Description

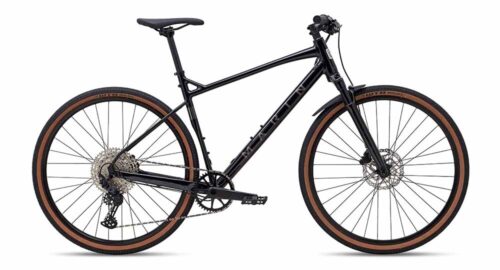

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes,long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Specification
| Frame | Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8° x 1 1/2° |
| Stem | Marin 3D Forged Alloy |
| Handlebar | Marin MiniRiser |
| Grips | Marin MTB |
| Brake Levers | Shimano Hydraulic |
| Brakes Front | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| Brakes Rear | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| Tires | WTB Riddler, 700Cx45mm |
| Rim | Marin Aluminum Double Wall, Disc Specific |
| Hub Front | Forged Aluminum, 100x12mm, Disc Specific, 32H |
| Hub Rear | Forged Aluminum Alloy, 142x12mm, Disc Specific, 32H |
| Spokes | 14g Black Stainless Steel |
| Derailleur Rear | Shimano Deore, RDM6100, 12-Speed |
| Shift Lever | Shimano Deore, SLM6100, 12-Speed |
| Chain | KMC X12 |
| Cassette | Shimano Deore, CS-M6100, 12-Speed, 10-51T |
| Crankset | Forged Alloy 1×11, Hollow Spindle, Steel Narrow Wide 42T Chainring |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Saddle | Marin MTB |
| Seatpost | Marin Alloy, 27.2mm |
