Description

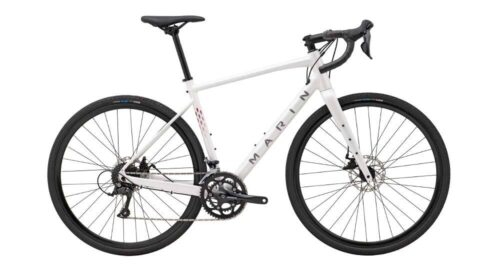

Upgrade your gravel adventures with the Gestalt 1’s Series 3 Aluminum frame and carbon fork. Stash snacks and tools inside the frame with our Bear Box storage system. Cables route internally for clean looks. Flared bars and dialed geometry boost control when things get loose, and wide 40mm tires stick to sketchy surfaces. Shimano’s CUES 9-speed drivetrain keeps you spinning all day and powerful CUES hydraulic disc brakes stop in any conditions. Rack and fender mounts add even more versatility.
Specification
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Bear Box Internal Storage, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle, Hidden Kickstand Mount |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Gear Mounts and Fender Eyelets |
| Headset | FSA No 42ACB, 1 1/8" x 1 1/2° |
| Stem | Marin 3D Forged Alloy |
| Handlebar | Marin Butted Alloy, Compact 16" Flared Drop |
| Grips | Marin Perforated Tape |
| Brake Levers | Shimano w/ Integrated Shifters |
| Brakes Front | Shimano CUES Hydraulic, Flat Mount |
| Brakes Rear | Shimano CUES Hydraulic, Flat Mount |
| Tires | WTB, Exposure Comp, 700×36 |
| Rim | Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific |
| Hub Front | Forged Aluminum Alloy, 6-Bolt Disc, 24H |
| Hub Rear | Forged Alloy, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Derailleur Front | Shimano CUES |
| Derailleur Rear | Shimano CUES 9-Speed |
| Shift Lever | Shimano CUES 2×9-Speed |
| Chain | KMC LG |
| Cassette | Shimano CUES LG300, 11-36T |
| Crankset | CUES 9-speed, 46/32T |
| Bottom Bracket | Shimano Outboard Bearing |
| Pedals | Nylon Platform |
| Saddle | Marin Beyond Road Concept |
| Seatpost | Marin Alloy, 27.2mm |
