Description

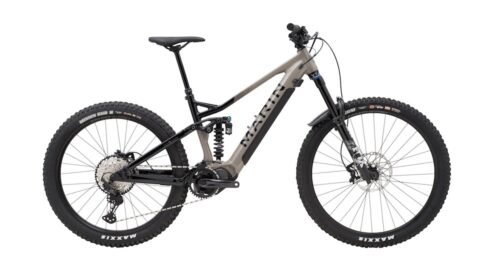

The Alpine Trail E2 is a masterclass in performance.
Our featherweight all-new Series 4 Aluminum frame packs a ride-all-day, removable 800Wh battery. Personalize your ride and devour chunky terrain with adjustable geometry, while 160mm of MultiTrac 2 LT suspension keeps you flowing. Experience superhuman climbing power of Bosch’s 120Nm, 600 per cent assist Gen 5 CX motor. Track your stats with the 2in color Kiox top tube display. Ultra-adjustable RockShox Zeb and Vivid Select+ shocks pair with SRAM’s crisp-shifting Eagle Transmission. Maven Bronze brakes have a light feel but heavy stopping power. The Alpine Trail E2 is enduro eMTB’s checkmate.
Specification
| Frame | All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
|---|---|
| Rear Suspension | RockShox Vivid Air Select +, 205×65, 30xM8 Lower Hardware, Custom Tune |
| Fork | RockShox Zeb Select +, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset |
| Headset | FSA Custom Headset, Adjustable HTA Design |
| Stem | New Marin CNC , 35mm Length, 35mm Bar Bore |
| Handlebar | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 30mm Rise, 5 Degree Up, 8 Degree Back |
| Grips | Marin Grizzly Lock-On |
| Brake Levers | SRAM Maven Bronze, MMX Clamps |
| Brakes Front | SRAM Maven Bronze, 4-Piston Hydraulic Disc , HSC 200mm Rotor |
| Brakes Rear | SRAM Maven Bronze, 4-Piston Hydraulic Disc , HSC 200mm Rotor |
| Tires | Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29×2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5×2.5" |
| Rim | WTB Sportterra Tough i30 Wheelset |
| Hub Front | WTB Sportterra Tough i30 Wheelset |
| Hub Rear | WTB Sportterra Tough i30 Wheelset, 6-Bolt Disc, STD Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Derailleur Rear | SRAM Eagle 70 |
| Shift Lever | SRAM Eagle 90, MMX Clamp |
| Chain | SRAM Eagle 70 T-Type |
| Cassette | SRAM XG 1270, T-Type, 10-52T |
| Crankset | Marin Forged eMTB Cranks, 150mm |
| Saddle | Marin Short Nose |
| Seatpost | X-Fusion Manic TTA HC, Alloy Lever, Travel Adjust 10mm increments, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm |
| Motor | Bosch Performance Line CX, 750W, 120Nm |
| Battery | PT800 Horizontal |
| Switch | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| Display | Bosch Kiox 400 Top Tube Display |
| Extra1 | e*thirteen e*Spec Chainguide |
| Extra2 | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
| Extra3 | Bosch 4A |
| Range | 115-55 miles/25-90km |
| Charge Time | 6 hours |
| App | Bosch eBike Flow App |
